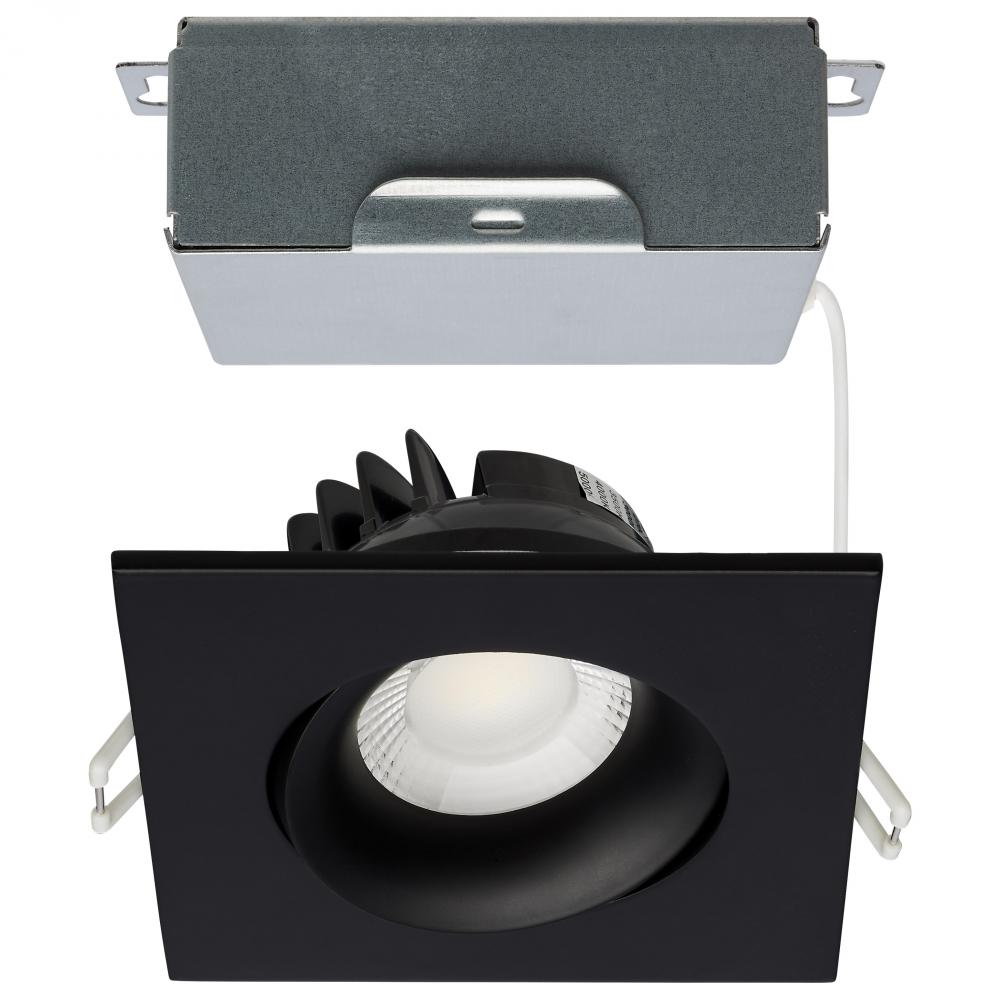

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Square; Remote Driver; Black (X6PP8)

Image may not reflect selected features

No Image
Available

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Square; Remote Driver; Black

BASE PRICE:

/ / 1

($39.90 / 1)

WAS

Call for Price

Item #:

X6PP8

Dimensions:

Height: 2.10"

Width: 4.38"

Finish:

Black

Availability:

Manufacturer has 1979 items available.

Recommended Items

Description

Details

Downloads

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Square; Remote Driver; Black Finish; 840 Lumens; 120 Volt

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Option:

LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Additional Info:

360 Degree Rotation; 30 Degree Tilt

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

4.38

Lumens:

840L

Ship Carton Height:

5.31

Ship Carton Length:

5.31

Ship Carton Width:

3.74

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Carton Cubic Feet:

0.061

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

3.563 in. Cutout

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

90 CRI

Feature 2:

5 CCT Selectable

Feature 3:

Dimmable

Feature 4:

Wet Location Rated

Feature 5:

Title 24 Compliant

Feature 6:

Remote J-Box

Feature 7:

360-Degree Rotation, 30-Degree Tilt

Feature 8:

IC Rated

Feature 9:

Aluminum Construction with PMMA Lens

Finish Family:

Black

Fixture shape:

Square

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO's S11628R1 LED Directional Architectural Downlight is made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. In

Material:

Aluminum

Mounting Procedure:

Recessed Direct Wire

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Directional Architectural Downlights are made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Install a

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12W/DW/GBL/3.5/CCT/SQ/RD/BK

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Color:

Black

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

1.01
